AC servo Two Axies Robot Arm
Products: Hits: 1350AC servo Two Axies Robot Arm
Price: Negotiable
Min. Order: 1 Set
Total Quantity:
Delivery: days after payment
Valid until: Never Expire
Updated: 2019-06-06 21:25

▌ Features

1, imported pneumatic components, durable.

2, each axis adopt servo motor drive, run smooth, accurate positioning and automatic packing and qualifying.

3, lead and take high strength aluminum extrusions, arms with precision linear slide rail, light weight, good rigidity, low friction,

Life is long.

More than 4, adopt servo motor, make more flexible arm movement, linkage, and a few servo motor can greatly shorten the extraction

Out of the cycle and the whole cycle.

▌ Parameters

models HY-90D HY-100D HY-110D HY-120D
Power capacity (kva) 1 1 1
For molding machine (Ton) 200-200. 350-350. 400-400. 350-350.
Then schedule (mm) 1300 (1540). 1540 (1800). 1540 (1800). 2000 (2200).
Then drive mode Standard Y: AC servo motor drive to choose M: frequency conversion motor drive
Lead pull stroke (mm) P:300 P:300 P:300 P:400
R:150 R:150 R:150 R:200
Up and down stroke (mm) 900 1000 1100 1200
The maximum load (kg) 5 10 10 10
Take out the time (SEC) 2.4 2.5 2.8 3
Full cycle time (SEC) 12 14 14.5 18
Air consumption (NI/cycle) 29 37 40 75
The power supply AC220v±10v 50/60HZ
The power capacity 0.2
Work pressure 5kgf/cm² 0.49Mpa
The maximum allowable pressure 8kgf/cm² 0.8Mpa
Drive way Y inverter motor/AC servomotor X,Z pneumatic cylinder
Lateral position 90° Fixed Pneumatic
Control system SGCX-AM3/SGCX-AY3
Net weight (kg) 220-220. 335-335. 355-355. 450-450.

▌ Details

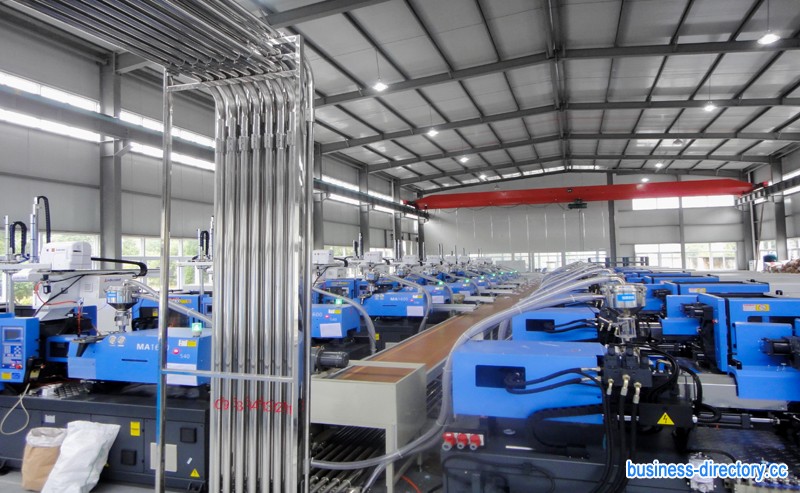

AC servo Two Axies Robot Arm 1

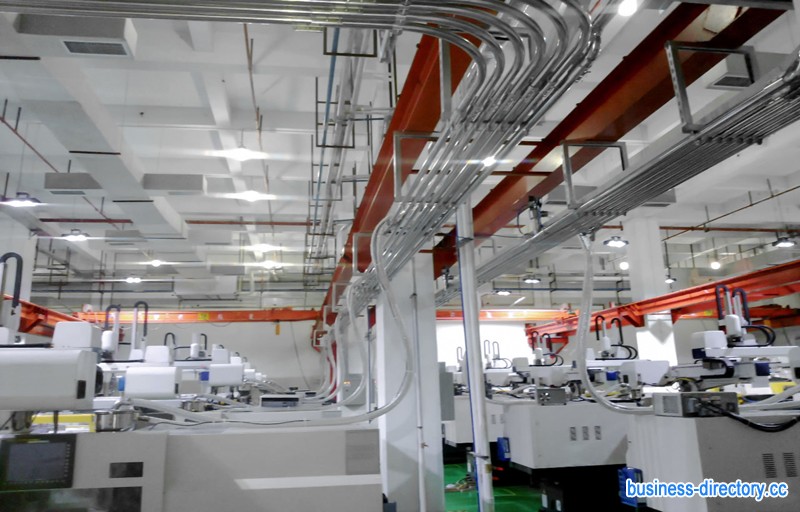

AC servo Two Axies Robot Arm 02

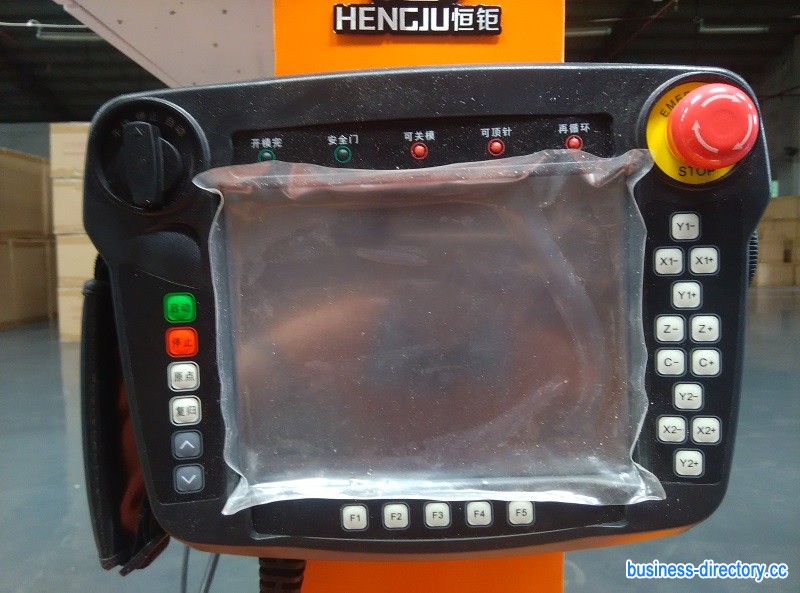

AC servo Two Axies Robot Arm 03
